Description

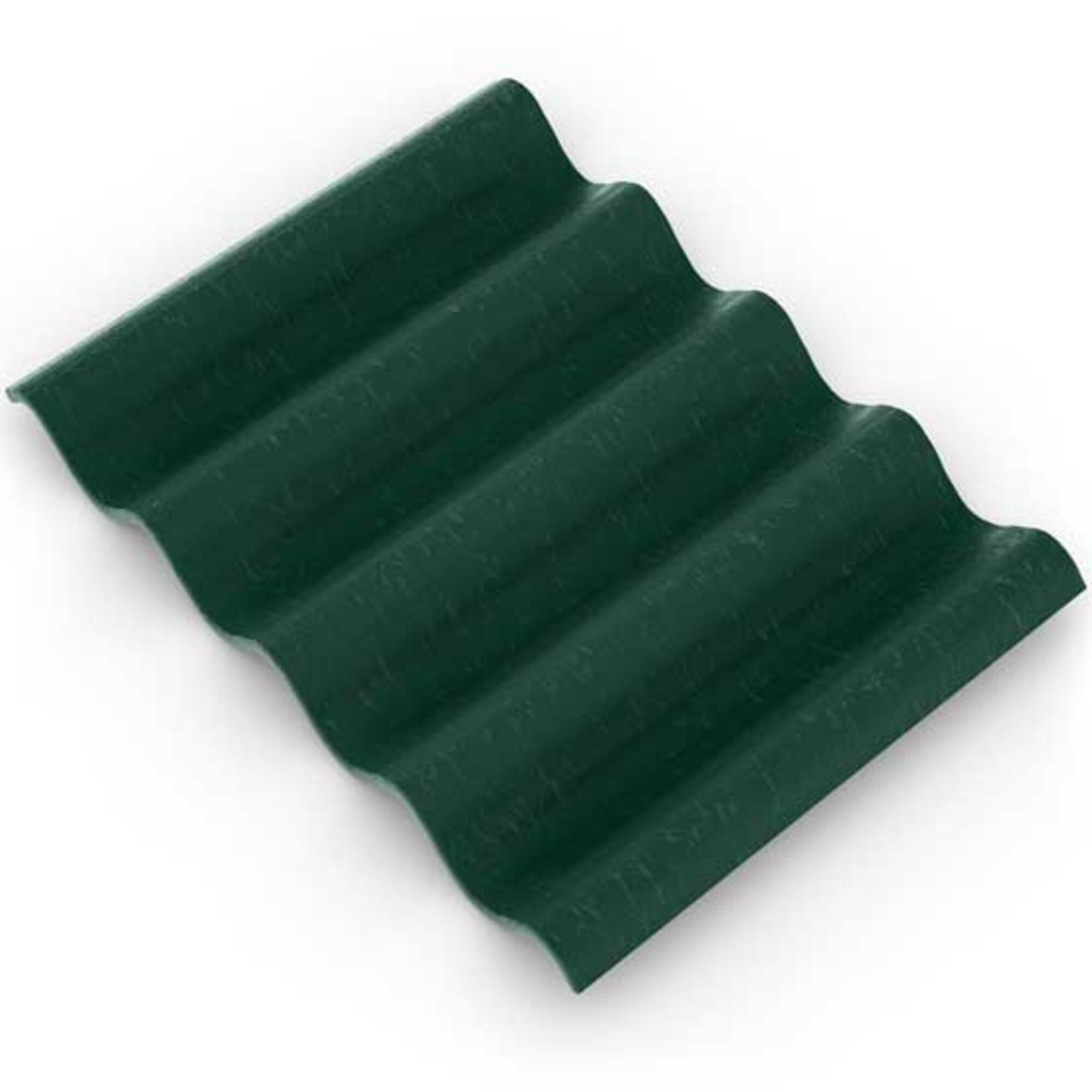

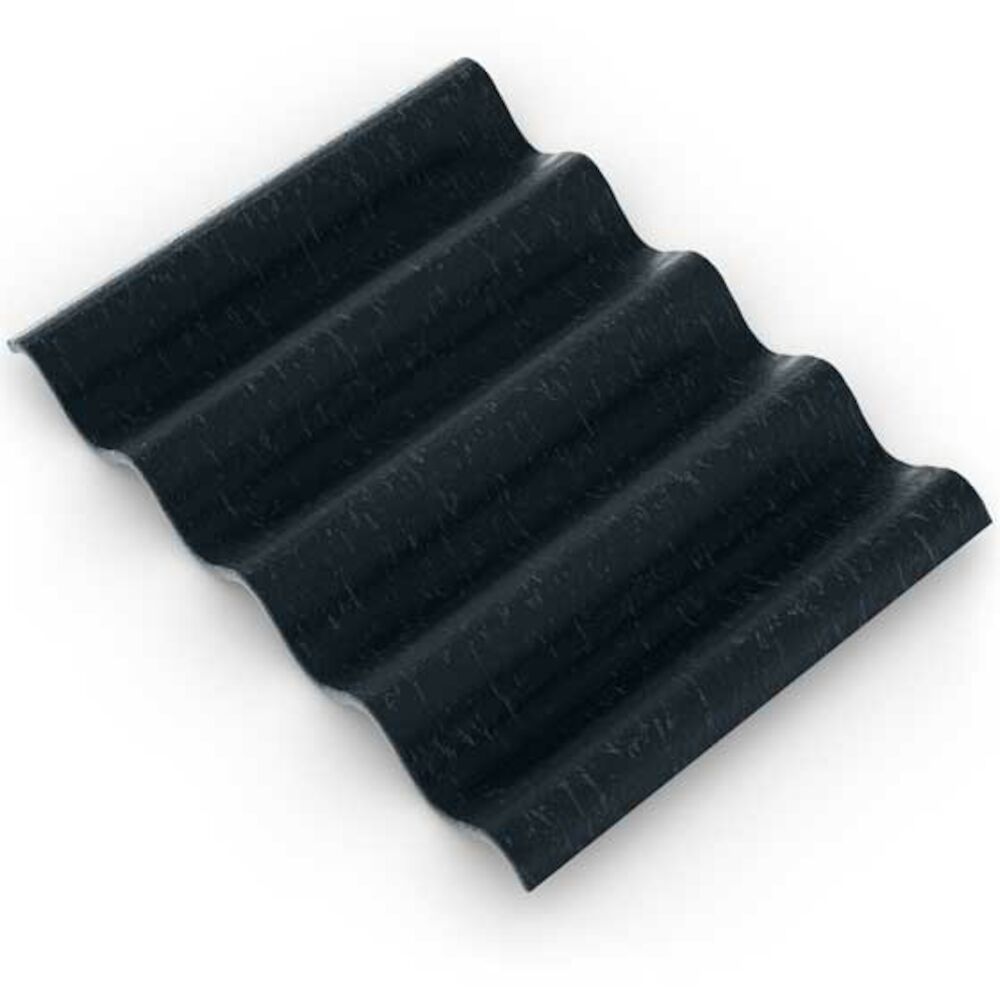

The perfect material for livestock buildings, equestrian centres and agricultural storage. Profile 6 is a high strength fibre cement corrugated roof sheet with polypropylene reinforcement strips inserted along precisely engineered locations that run along the length of the sheet. This provides maximum impact strength without affecting the durability of the product.
Benefits
- Best quality fibre cement sheeting
- Guaranteed for 30 years, anticipated lifespan in excess of 60 years
- Warm in winter, cool in summer
- No condensation
- Maintenance-free; corrosion resistant
- Absorbs rain noise for increased animal comfort
- Complete technical support
- CE Mark approved
- Backed by 80 years experience
- Crown fixed - low risk of leakage
- Spaced sheeting available
Technical specifications
Technical Data | Standard Roofing | Spaced Sheeting |
Overall width | 1086 mm | 1016 mm |
Net covering width | 1016 mm | 1016 mm |
Thickness (nominal) | 6.7 mm | 6.7 mm |
Density (nominal) | 1450 kg/m³ | 1450 kg/m³ |
Pitch of corrugations (nominal) | 146.5 mm | 146.5 mm |
Depth of profile | 47.6 mm | 47.6 mm |
Profile height category | C | C |
Side lap | 70 mm | N/A |
Minimum end lap | 150 mm | 150 mm |
Maximum purlin centres | 1375 mm | 1375 mm |
Maximum rail centres | 1825 mm | 1825 mm |
Maximum unsupported overhang | 350 mm | 350 mm |
Approx. weight of roof as laid, with end lap, single skin including fixings | 17 kg/m² | 16 kg/m² |
Minimum roof pitch | 10° | 12° |
